mono, 370W, 120 cells, 1000V, 35mm black frame, black backsheet, PERC, cable 1200mm(+/-)

Product Description:

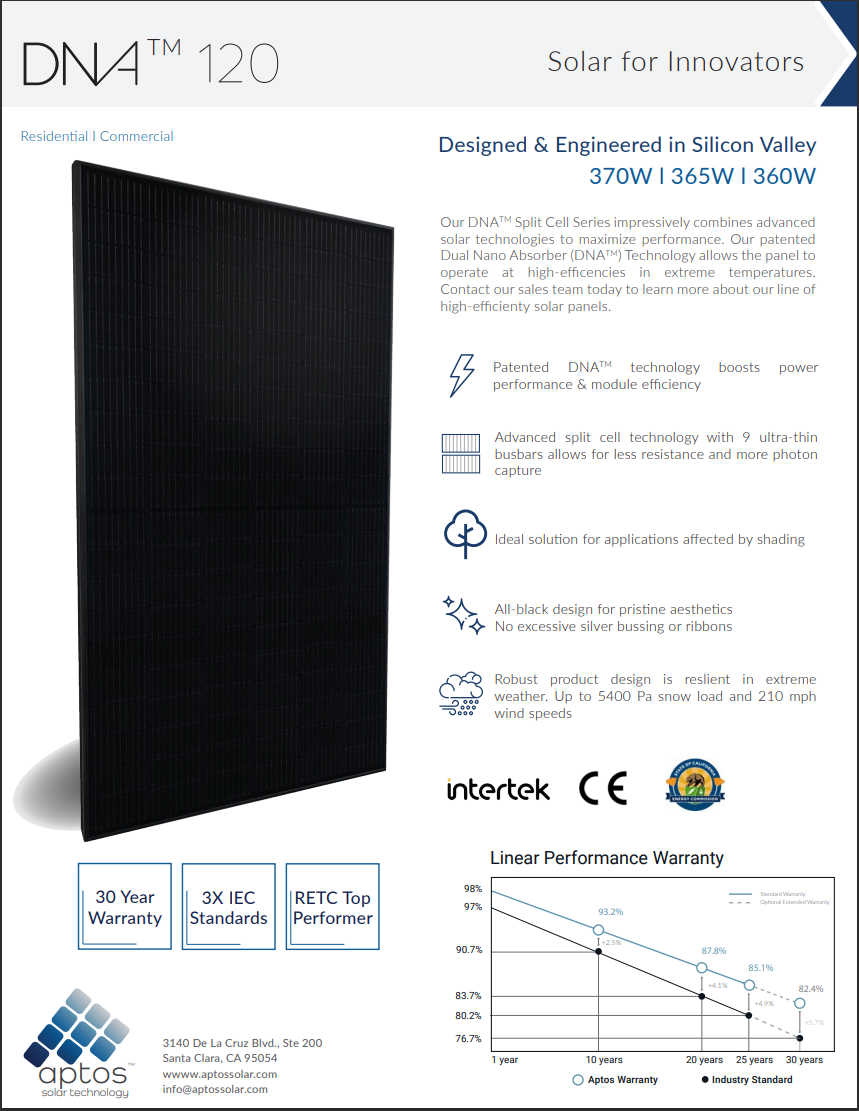

Discover superior solar performance with the Aptos DNA Split Cell Series, expertly designed and engineered in Silicon Valley. These solar panels incorporate patented DNA technology and advanced split cell technology with 9 ultra-thin busbars for enhanced efficiency and photon capture. Ideal for both residential and commercial applications, these panels are built to perform exceptionally in extreme temperatures and conditions.

Key Features:

• Advanced Technology: Features patented Dual Nano Absorber (DNA) technology that optimizes efficiency even in extreme temperatures.

• Enhanced Efficiency: Module efficiency rates up to 20.29%, ensuring more power output and higher performance.

• Robust Design: Capable of withstanding up to 5400 Pa snow load and 210 mph wind speeds, making it suitable for harsh environmental conditions.

• Aesthetic Appeal: Sleek all-black design that integrates seamlessly with your property's aesthetics.

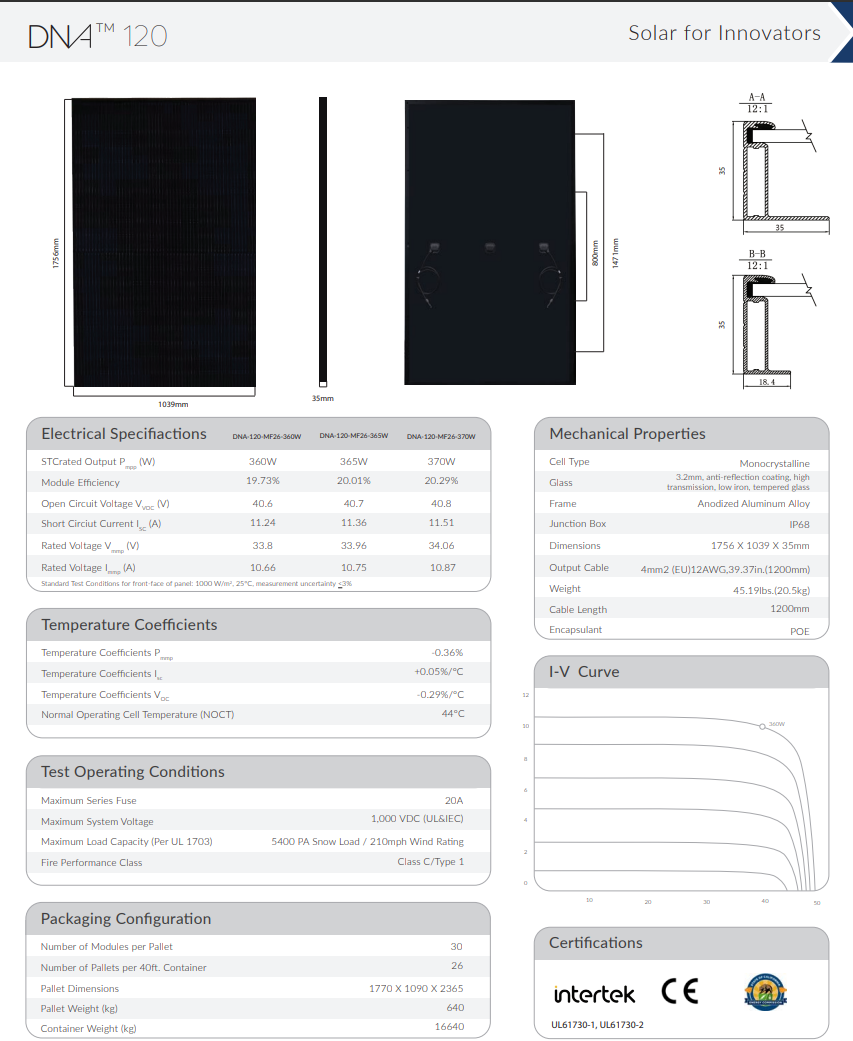

Technical Specifications:

• Power Output Variants: 370W

• Module Efficiency: Up to 20.29%

• Voltage & Current:

  • Open Circuit Voltage (VOC): Ranges from 40.6V to 40.8V

  • Short Circuit Current (ISC): Approximately 11.24A to 11.51A

• Dimensions: 1756 x 1039 x 35 mm

• Weight: 45.19 lbs (20.5 kg)

Installation and Usability:

• Versatile Use: Perfect for both rooftop and large-scale commercial installations.

• Durability: Built to endure long-term exposure to environmental stressors without sacrificing performance.

• Warranty: Backed by a 30-year linear performance warranty, ensuring long-term reliability and customer satisfaction.

Equip your property with Aptos DNA Split Cell Series Solar Panels to enjoy sustainable energy production backed by cutting-edge technology and a robust design.

Keywords:

Aptos solar technology, high-efficiency solar panels, residential solar panels, commercial solar solutions, extreme weather solar panels, Silicon Valley engineered solar, DNA technology solar panels, split cell solar technology, durable solar panels, advanced solar panels.

Manufacturer Aptos Solar

Manufacturer Item Type Name DNA-120-MF26-370W

Cell type monocrystalline

Length without packaging (mm) 1756

Height without packaging (mm) 35

Width without packaging (mm) 1039

Weight (kg) 20.5

Power rating Pmax (Wp) 370

Nominal current Impp (A) 10.87

Nominal voltage Umpp (V) 34.06

Open circuit voltage Uoc (V) 40.8

Short circuit current Isc (A) 11.51

Max. system voltage (V) 1000

Number of cells (pcs) 120

Frame colour black

Frametype framed

Length of cables plus (cm) 120

Lenght of cables minus (cm) 120

Temperature coefficient Pmpp (%/K°C) -0.36

Temperature coefficient Isc (%/°C) 0.05

Temperature coefficient Uoc (%/°C) -0.29

Performance warranty (yr) 30
