mono, 440W, 120 cells, 1500V, 35mm black frame, black backsheet, PERC, cable 1200mm(+/-)

Product Description:

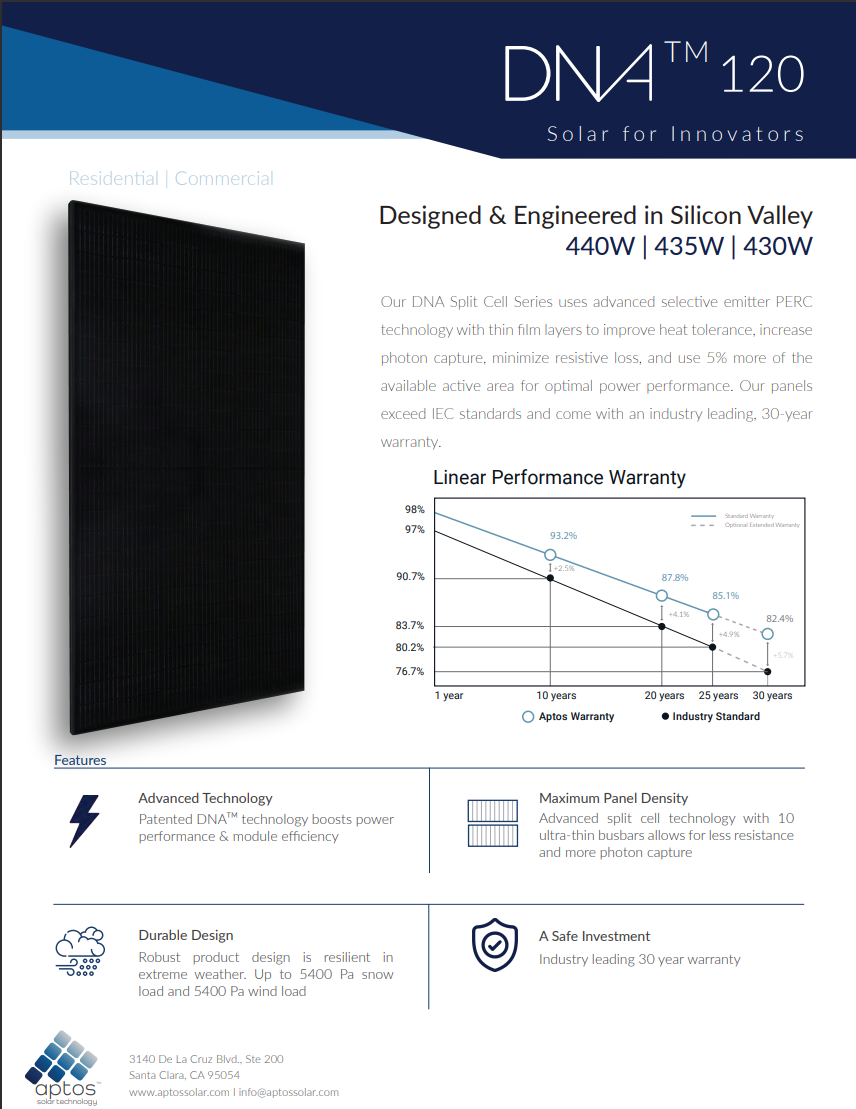

Elevate your solar experience with the Aptos DNA Split Cell Series, featuring cutting-edge selective emitter PERC technology designed and engineered in Silicon Valley. These high-performance solar panels are tailored for both residential and commercial applications, ensuring superior photon capture and energy efficiency. With a robust design capable of withstanding extreme weather conditions and an industry-leading 30-year warranty, these panels are built to deliver unparalleled power and reliability.

Key Features:

• Advanced PERC Technology: Utilizes selective emitter PERC technology with thin film layers to enhance heat tolerance and photon capture.

• High Efficiency: Achieves up to 20.85% module efficiency with advanced split cell technology, featuring 10 ultra-thin busbars to minimize resistance.

• Durable Design: Engineered to handle up to 5400 Pa of snow load and wind load, making it ideal for extreme weather conditions.

• Extended Warranty: Comes with a standard 30-year performance warranty, providing long-term reliability and peace of mind.

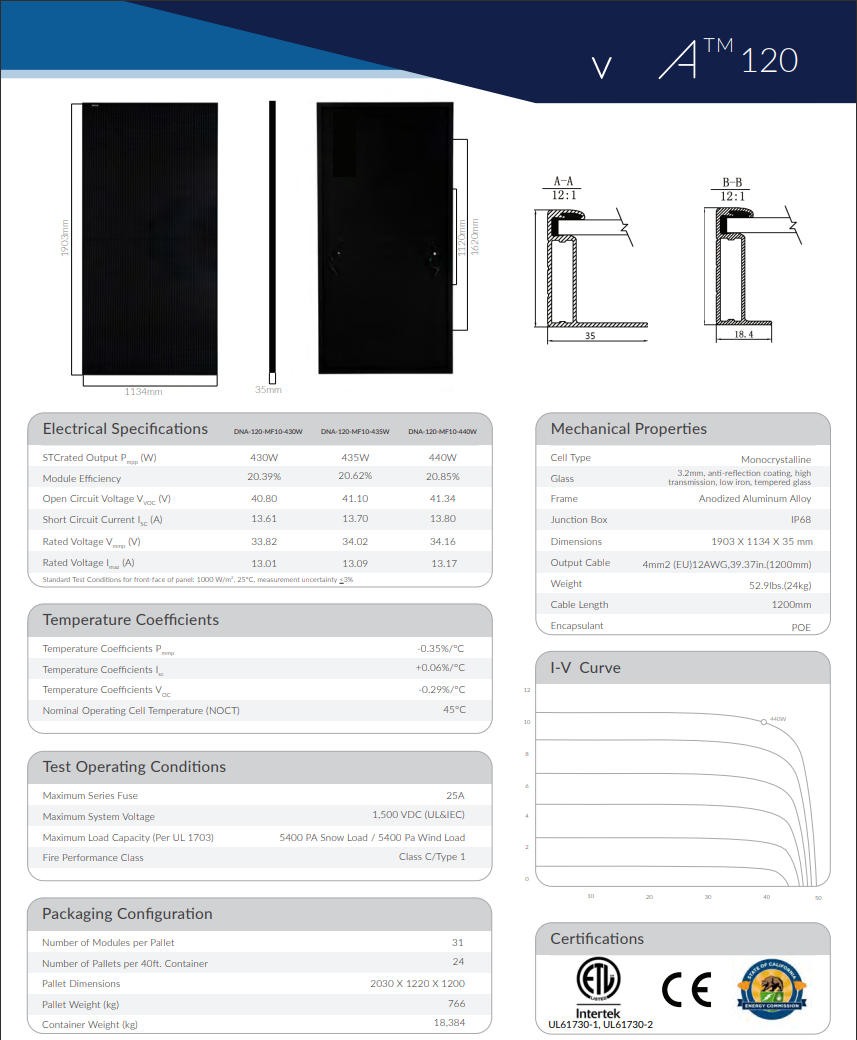

Technical Specifications:

• Rated Power Outputs: 440W

• Module Efficiency: Ranging from 20.39% to 20.85%

• Voltage and Current:

  • Open Circuit Voltage (VOC): From 40.80V to 41.34V

  • Short Circuit Current (ISC): 13.61A

• Dimensions: 1903 x 1134 x 35 mm

• Weight: 52.9 lbs (24 kg)

Installation and Usage:

• Versatile Applications: Suitable for both rooftop and ground-mounted installations in residential or commercial settings.

• Easy Integration: Equipped with IP68 junction boxes and 12AWG output cables, ensuring easy and secure installations.

Empower your property with the Aptos DNA Split Cell Series Solar Panels, where innovative design meets exceptional performance, driving forward a sustainable and efficient energy future.

Keywords:

Aptos solar panels, high-efficiency solar panels, PERC technology, durable solar module, residential solar, commercial solar, Silicon Valley engineered solar, extreme weather solar panels, long warranty solar panels, advanced technology solar panel.

Manufacturer: Aptos Solar

Manufacturer Item Type Name: DNA-120-MF10-440W

Cell type: monocrystalline

Length without packaging (mm): 1903

Height without packaging (mm): 35

Width without packaging (mm): 1134

Weight (kg): 24

Power rating Pmax (Wp): 440

Nominal current Impp (A): 13.17

Nominal voltage Umpp (V): 34.16

Open circuit voltage Uoc (V): 41.34

Short circuit current Isc (A): 13.8

Max. system voltage (V): 1500

Number of cells (pcs): 120

Frame colour: black

Frametype: framed

Length of cables plus (cm): 120

Lenght of cables minus (cm): 120

Temperature coefficient Pmpp (%/K°C): -0.35

Temperature coefficient Isc (%/°C): 0.06

Temperature coefficient Uoc (%/°C): -0.29

Performance warranty (yr): 30
