Mircoinverter, 0.29kW, 240V AC, 60Hz, 235W-440W, Compatible With 60-Cell/120 Half-Cell, 66-Cell/132 Half-Cell And 72-Cell/144 Half-Cell, With Integrated MC4 Connectors

Product Description:

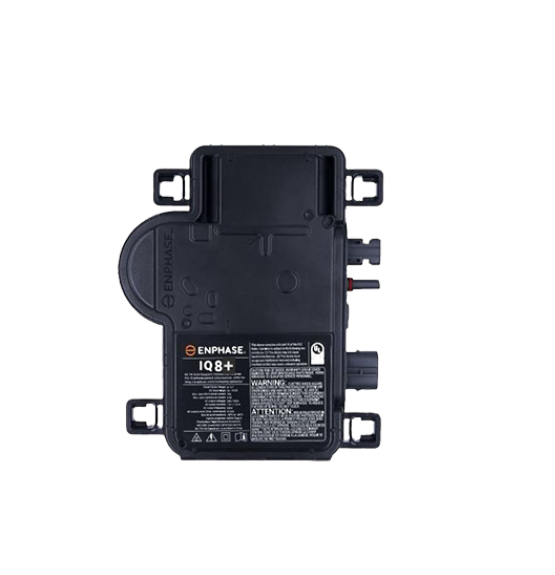

Experience the future of solar energy with the Enphase IQ8PLUS-72-M-US Microinverters, the industry’s first microgrid-forming, software-defined inverters capable of split-phase power conversion. Designed to efficiently convert DC power to AC power, these microinverters are perfect for residential solar installations. They offer seamless integration with the Enphase Energy System, including the Enphase IQ Battery and Enphase IQ Gateway, ensuring optimized performance and reliability.

Key Features:

• High Efficiency: Peak efficiencies of up to 97.6%, ensuring more energy conversion and less waste.

• Grid-Forming Capabilities: Can operate in both grid-tied and off-grid modes, providing power even during grid outages when paired with an IQ System Controller 2.

• Easy Installation: Lightweight and compact design with plug-n-play MC4 connectors for quick and easy setup.

• Enhanced Safety: UL Listed as PV Rapid Shut Down Equipment, meeting strict safety standards including NEC 2014, NEC 2017, and NEC 2020.

Technical Specifications:

• Maximum Input DC Voltage: 60 V

• Maximum DC Current: 15 A

• Peak Output Power: 300 VA

• Max Continuous Output Power: 290 VA

• Nominal Voltage Range: 240 V (211 – 264 V)

• Operating Temperature Range: -40°C to +60°C (-40°F to +140°F)

Additional Specifications:

• Communication: Power Line Communication (PLC) between components.

• Compliance: CA Rule 21 (UL 1741-SB), UL 62109-1, UL1741 / IEEE1547.

• Dimensions: 8.3 x 6.9 x 1.2 inches

• Weight: 2.43 lbs

• Cooling: Natural convection – no fans required.

Installation and Compliance:

• Simple and Fast Installation: Features a two-wire cabling system that simplifies installation.

• Reliability: Over one million cumulative hours of power-on testing ensures long-term reliability.

• Monitoring and Control: Integrates with Enphase App for detailed monitoring and analysis.

Boost your home’s energy efficiency with the Enphase IQ8PLUS-72-M-US Microinverters, designed for those who demand the best in solar technology.

Keywords:

Enphase IQ8PLUS Microinverter, advanced solar inverter, high-efficiency solar conversion, grid-forming microinverter, residential solar power, smart solar system, Enphase Energy System, reliable solar energy, solar power backup, easy installation solar technology.

Manufacturer: Enphase

Manufacturer Item Type Name: IQ8PLUS-72-M-US

Type of DC connection: MC4 Original

Length without packaging (mm): 30.2

Width without packaging (mm): 175

Height without packaging (mm): 212

Weight (kg): 1.1

AC nominal power (kW): 0.29

European efficiency (%): 97

Feed-in phases: 1

Max. AC power (kVA): 0.3

Max. efficiency (%): 97.6

Max. input current (A): 15

Max. input voltage DC (V): 60
