universal end clamp, aluminium, stainless steel

Product Description:

Secure your solar panels with precision using the SnapNrack Universal End Clamp, a vital component engineered for optimal compatibility and performance in solar mounting systems. Made from durable 6000 series aluminum and stainless steel, this end clamp ensures a strong and reliable hold on solar panels, enhancing system stability. Certified under UL 2703, the SnapNrack end clamp is designed to meet the highest standards of safety and efficiency.

Key Features:

• High-Quality Materials: Constructed from 6000 series aluminum and stainless steel for maximum durability and corrosion resistance.

• Robust Design: Capable of withstanding an ultimate load of 2400 lbs and a design load of 800 lbs, ensuring secure panel mounting.

• Universal Compatibility: Designed to fit a wide range of solar panel frames, making it versatile for various installation needs.

• Certified Safety: Meets UL 2703 standards, providing assurance of quality and safety in your solar installations.

• Lightweight: Weighs only 0.24 lbs, allowing for easy handling and installation without adding significant weight to the solar array.

Technical Specifications:

• Material: 6000 series aluminum, stainless steel

• Ultimate Load: 2400 lbs

• Design Load: 800 lbs

• Torque Specification: 10+ lb-ft

• Certification: UL 2703, File E359313

• Weight: 0.24 lbs

Installation and Usability:

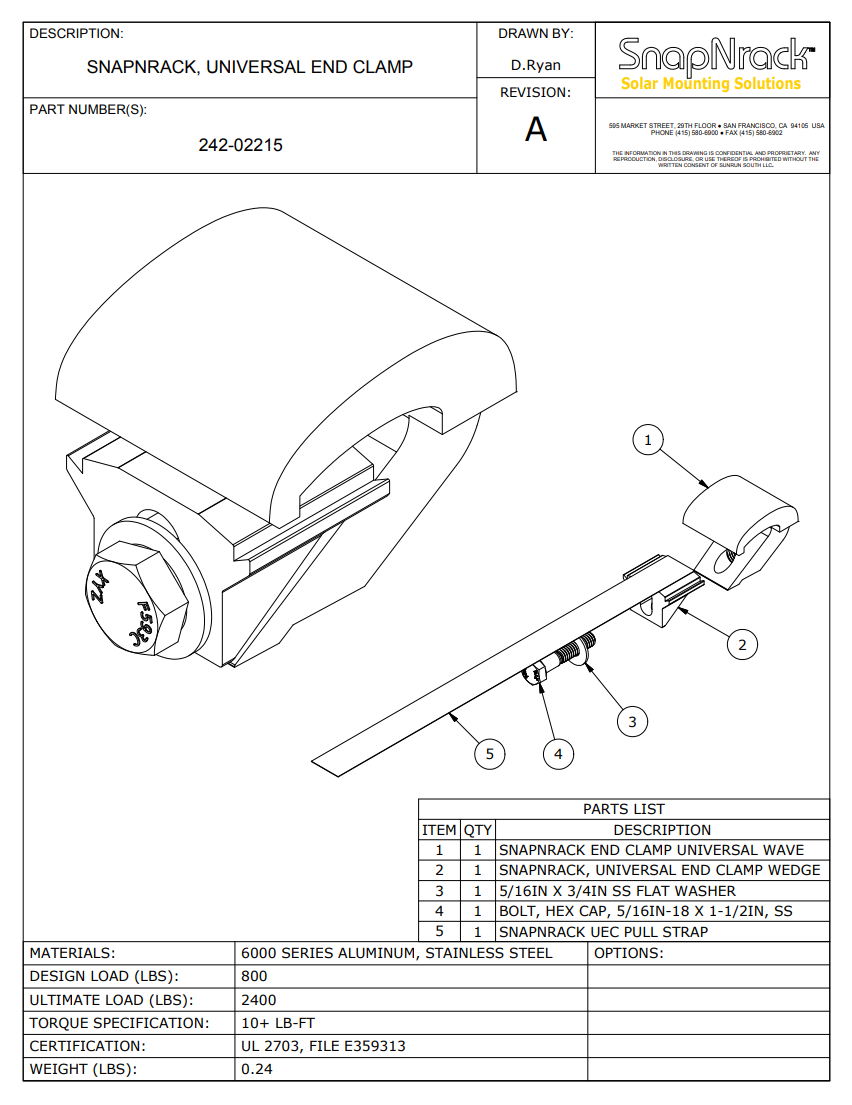

• Easy Installation: Comes with all necessary components for a straightforward setup, including a universal wave clamp, wedge, and associated hardware.

• Versatile Use: Ideal for both residential and commercial solar systems, providing a secure and lasting solution for end clamping needs.

Enhance the security and integrity of your solar panel installation with the SnapNrack Universal End Clamp, designed for superior performance and ease of use in any solar project.

Keywords:

SnapNrack end clamp, solar panel clamp, universal solar clamp, durable solar mounting, UL certified solar product, lightweight solar clamp, solar system installation, commercial solar accessory, residential solar hardware, solar panel mounting solutions.

Manufacturer SnapNrack

Manufacturer Item Type Name Universal End Clamp
