Battery Storage System, 3.36kWh, AC Coupled, With 4x Integrated Enphase IQ Microinverters, 1.28kW, 1ph, 240V AC, 60Hz And Battery Management Unit (BMU), Includes 1x Encharge Base Unit (B03-A01-US00-1-3), 1x Encharge 3 Cover Kit With Cover And Wall Mounting

Product Description:

Ensure continuous and reliable energy for your home or business with the Enphase Encharge 3™ AC-coupled storage system. This all-in-one solution is designed to provide seamless backup power, smart energy management, and easy installation, making it the perfect addition to any new or retrofit solar setup.

Key Features:

• Reliable Performance: Equipped with proven high-reliability IQ Series Microinverters and a robust ten-year limited warranty.

• Smart Energy Management: Features grid-forming capability for backup operation, remote software and firmware upgrades, and mobile app-based monitoring and control.

• Simple Installation: Fully integrated AC battery system with quick and easy plug-and-play installation that interconnects with standard household AC wiring.

• Enhanced Safety: Battery safety tested with Lithium iron phosphate (LFP) chemistry for maximum safety and longevity.

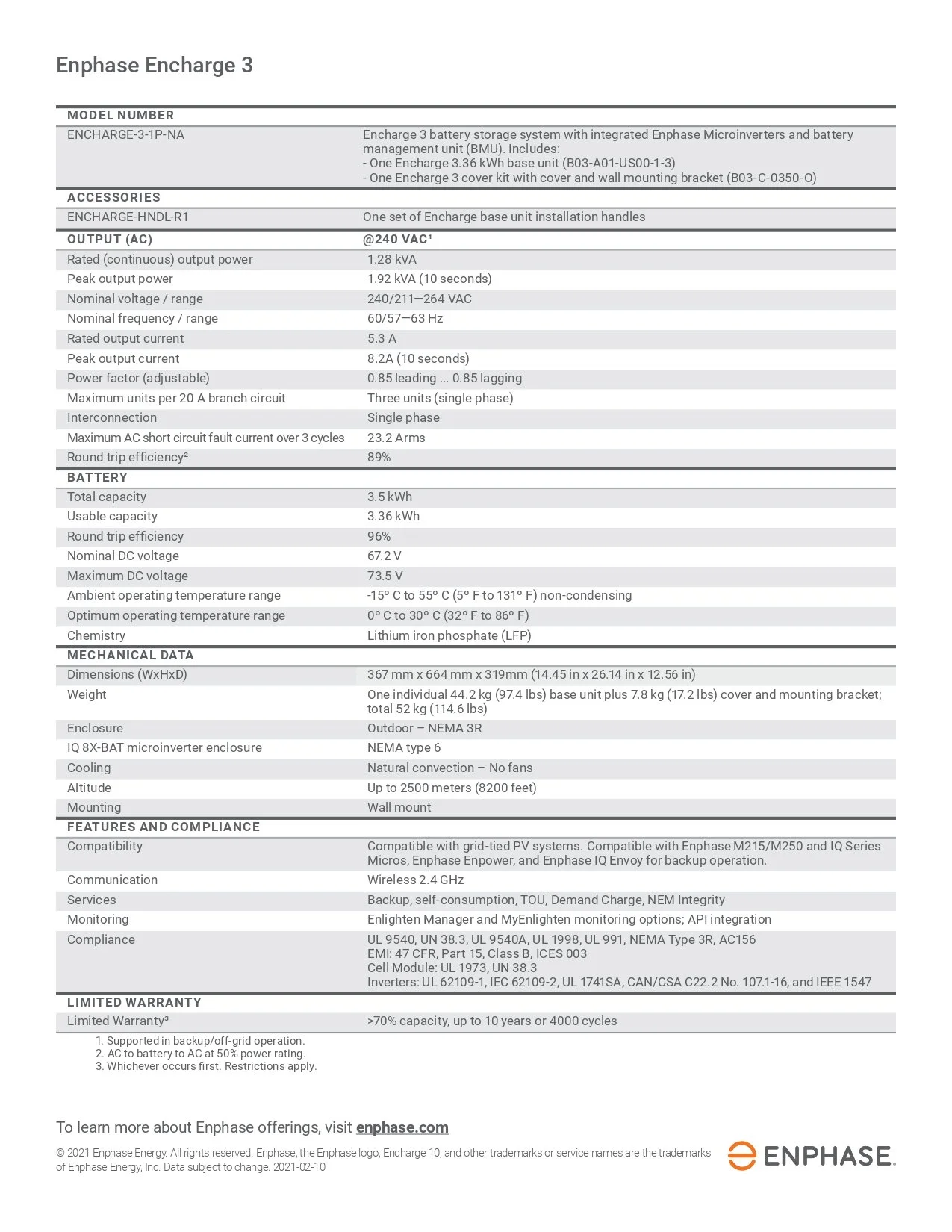

Technical Specifications:

• Model Number: ENCHARGE-3-1P-NA

• Output (AC) @240 VAC:

  • Rated (continuous) output power: 1.28 kVA

  • Peak output power: 1.92 kVA (10 seconds)

  • Nominal voltage / range: 240/211—264 VAC

  • Nominal frequency / range: 60/57—63 Hz

  • Rated output current: 5.3 A

  • Peak output current: 8.2A (10 seconds)

  • Power factor (adjustable): 0.85 leading ... 0.85 lagging

  • Maximum units per 20 A branch circuit: Three units (single phase)

  • Maximum AC short circuit fault current over 3 cycles: 23.2 Arms

  • Round trip efficiency: 89%

• Battery:

• Total capacity: 3.5 kWh

• Usable capacity: 3.36 kWh

• Round trip efficiency: 96%

• Nominal DC voltage: 67.2 V

• Maximum DC voltage: 73.5 V

• Ambient operating temperature range: -15º C to 55º C (5º F to 131º F) non-condensing

• Optimum operating temperature range: 0º C to 30º C (32º F to 86º F)

• Chemistry: Lithium iron phosphate (LFP)

• Mechanical Data:

  • Dimensions (WxHxD): 367 mm x 664 mm x 319mm (14.45 in x 26.14 in x 12.56 in)

  • Weight: 52 kg (114.6 lbs) including base unit and mounting bracket

  • Enclosure: Outdoor – NEMA 3R

  • Cooling: Natural convection – No fans

  • Mounting: Wall mount

  • Altitude: Up to 2500 meters (8200 feet)

• Compatibility: Compatible with grid-tied PV systems, Enphase M215/M250 and IQ Series Micros, Enphase Enpower, and Enphase IQ Envoy for backup operation.

• Communication: Wireless 2.4 GHz

Additional Benefits:

• Monitoring: Enlighten Manager and MyEnlighten monitoring options; API integration.

• Compliance: UL 9540, UN 38.3, UL 9540A, UL 1998, UL 991, NEMA Type 3R, AC156; Inverters compliant with UL 62109-1, IEC 62109-2, UL 1741SA, CAN/CSA C22.2 No. 107.1-16, and IEEE 1547.

• Warranty: Limited warranty of >70% capacity, up to 10 years or 4000 cycles, whichever occurs first.

Packaging:

• Includes:

• One Encharge 3.36 kWh base unit (B03-A01-US00-1-3)

• One Encharge 3 cover kit with cover and wall mounting bracket (B03-C-0350-O)

• Installation handles (ENCHARGE-HNDL-R1)

Ensure your energy independence and enhance your solar energy system with the Enphase Encharge 3™ storage system. Invest in smart, reliable, and safe energy storage today.

Manufacturer: Enphase

Manufacturer Item Type Name: ENCHARGE-3-1P-NA

Cell type: LFP/LiFePO4 (Lithium-Iron-Phosphate)

Length without packaging (mm): 319

Width without packaging (mm): 367

Height without packaging (mm): 664

Weight (kg): 44.2

Product warranty (yr): 10
