microinverter, 0.29kW, 208V, 240V AC, 60Hz, compatible with 60 and 72-cell PV modules

Product Description:

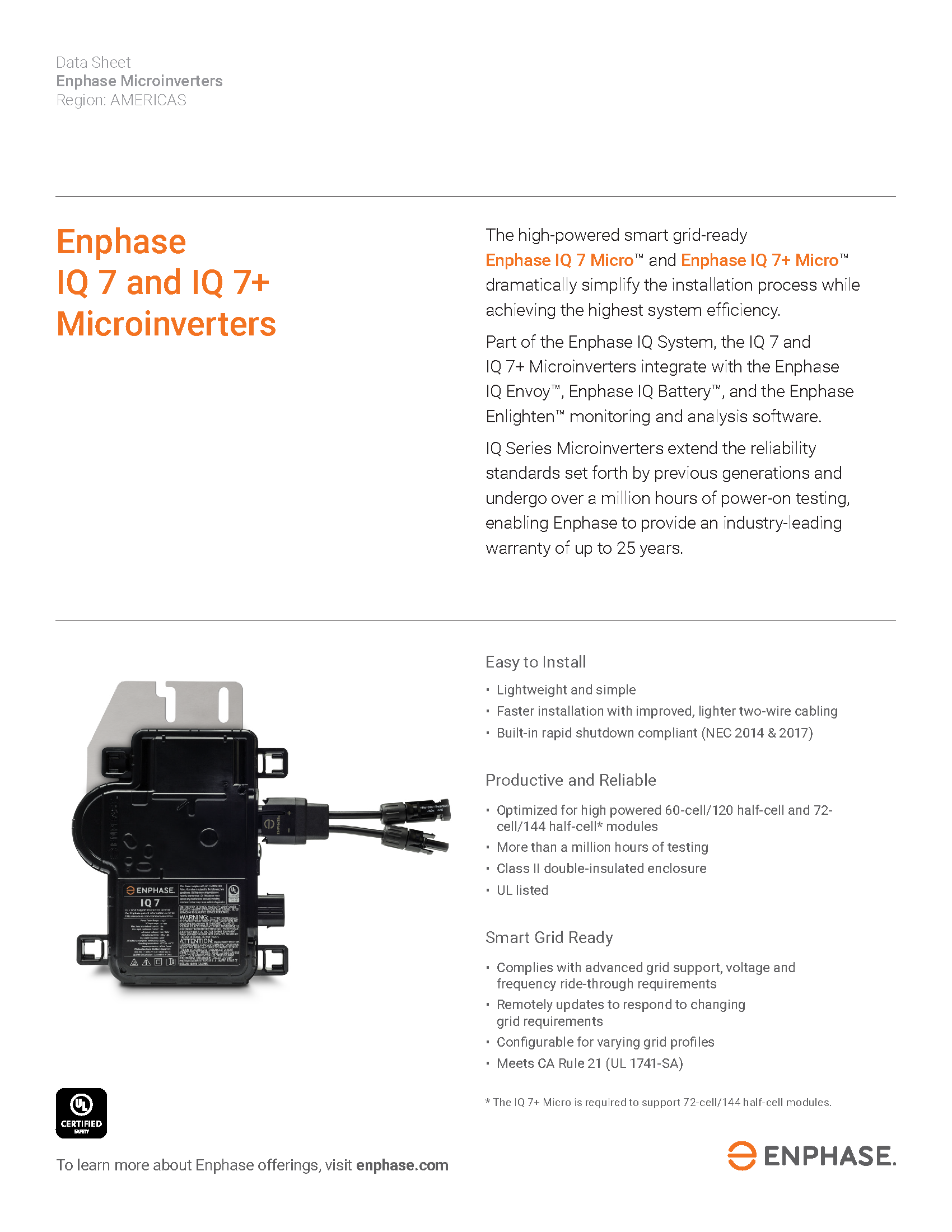

Upgrade your solar energy system with the high-powered and smart grid-ready Enphase IQ 7 and IQ 7+ Microinverters. These microinverters are designed to simplify installation while maximizing system efficiency, making them an excellent choice for both residential and commercial solar projects.

Key Features:

• Easy Installation: Lightweight and simple design with improved, lighter two-wire cabling for faster installation.

• Built-In Rapid Shutdown: Compliant with NEC 2014, 2017, and 2020 standards, ensuring safety and compliance.

• High Efficiency: Peak efficiency of 97.6% and CEC weighted efficiency of 97.0%, optimizing energy production from your solar panels.

• Versatile Compatibility: Supports 60-cell/120 half-cell and 72-cell/144 half-cell PV modules (IQ 7+ required for 72-cell/144 half-cell modules).

• Smart Grid Ready: Complies with advanced grid support, voltage, and frequency ride-through requirements, and can be remotely updated to meet changing grid needs.

• Reliable and Durable: Over a million hours of power-on testing and a Class II double-insulated enclosure ensure long-term reliability. Enphase offers an industry-leading warranty of up to 25 years.

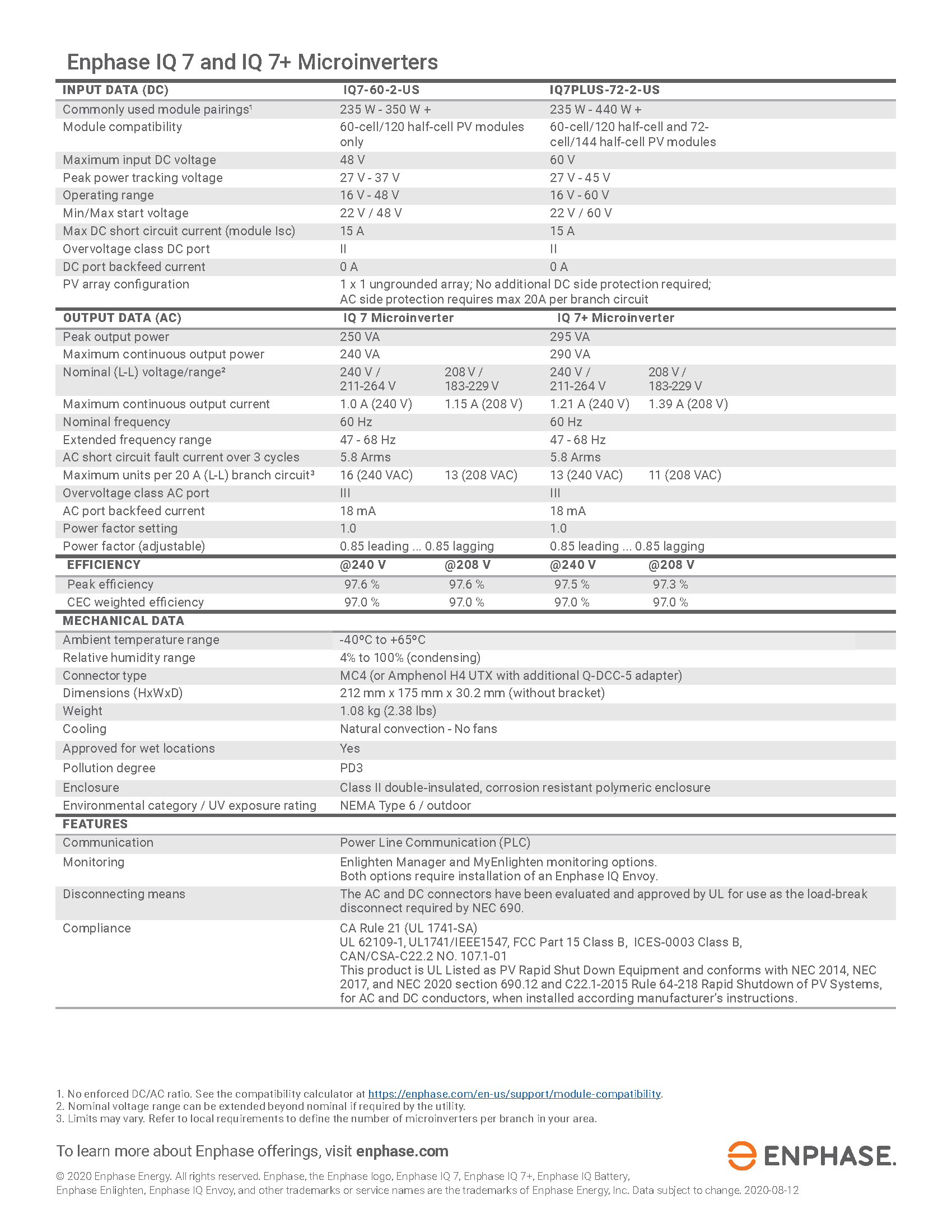

Technical Specifications:

• Input Data (DC):

• Common Module Pairings: 235W - 350W+ (IQ 7), 235W - 440W+ (IQ 7+)

• Maximum Input DC Voltage: 48V (IQ 7), 60V (IQ 7+)

• Peak Power Tracking Voltage: 27V - 37V (IQ 7), 27V - 45V (IQ 7+)

• Operating Range: 16V - 48V (IQ 7), 16V - 60V (IQ 7+)

• Maximum DC Short Circuit Current: 15A

• Output Data (AC):

• Peak Output Power: 250VA (IQ 7), 295VA (IQ 7+)

• Maximum Continuous Output Power: 240VA (IQ 7), 290VA (IQ 7+)

• Nominal Voltage/Range: 240V (211-264V), 208V (183-229V)

• Maximum Continuous Output Current: 1.0A (240V), 1.15A (208V) (IQ 7), 1.21A (240V), 1.39A (208V) (IQ 7+)

• Nominal Frequency: 60Hz

• Extended Frequency Range: 47 - 68Hz

• Mechanical Data:

• Dimensions: 212mm x 175mm x 30.2mm (without bracket)

• Weight: 1.08kg (2.38 lbs)

• Ambient Temperature Range: -40ºC to +65ºC

• Relative Humidity Range: 4% to 100% (condensing)

• Cooling: Natural convection - no fans required

• Enclosure: Class II double-insulated, corrosion-resistant polymeric enclosure, NEMA Type 6, approved for wet locations

• Compliance and Certifications:

• UL 62109-1, UL1741/IEEE1547, FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01

• Conforms with NEC 2014, 2017, and 2020 section 690.12 for Rapid Shutdown of PV Systems

Additional Benefits:

• Integrated System: Seamlessly integrates with the Enphase IQ Envoy, Enphase IQ Battery, and Enphase Enlighten monitoring and analysis software.

• Remote Monitoring: Enlighten Manager and MyEnlighten monitoring options provide real-time system performance tracking and diagnostics.

Packaging:

• Connector Type: MC4 or Amphenol H4 UTX with additional Q-DCC-5 adapter.

Optimize your solar energy system with the Enphase IQ 7+ Microinverters for unmatched efficiency, reliability, and ease of installation. Harness the power of advanced microinverter technology and take a step towards a sustainable energy future.

Manufacturer: Enphase

Manufacturer Item Type Name: IQ7PLUS-72-2-US

Length without packaging (mm): 30.2

Width without packaging (mm): 175

Height without packaging (mm): 212

Weight (kg): 1.08

AC nominal power (kW): 0.29

Display: Yes

European efficiency (%): 97

Feed-in phases: 1

Max. AC power (kVA): 0.3

Max. efficiency (%): 97.5

Max. input voltage DC (V): 60

Topology: Transformerless
