mono, 390W, 108 cells, 1500V, 35mm black frame, black backsheet, cable 1200mm(+/-), MC4 EVO2

Product Description:

Elevate your solar energy system with the AXITEC AXIblackpremium XXL HC High Performance Solar Module, featuring 108 half-cell monocrystalline technology for superior efficiency and durability. Engineered with precision and backed by German-American innovation, this solar panel is designed to deliver optimal performance for residential and commercial applications.

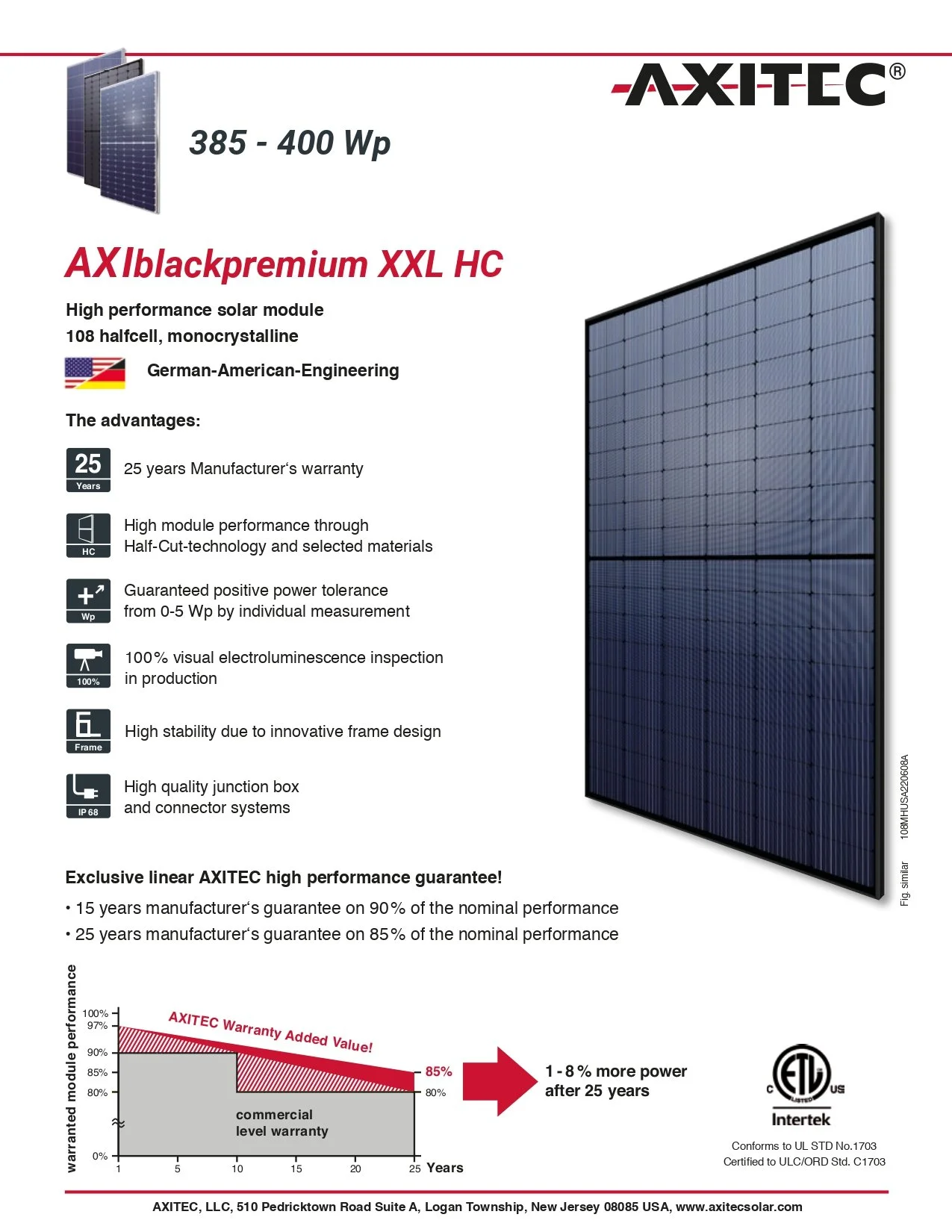

Key Features:

• High Performance: Available in power ratings of 385W, 390W, 395W, and 400W with module conversion efficiency up to 20.48%.

• Exceptional Warranty: 25-year manufacturer's warranty ensures 85% of nominal performance, and a 15-year warranty guarantees 90% of nominal performance.

• Advanced Technology: Half-Cut technology enhances module performance and durability, ensuring reliable energy production even in challenging conditions.

• Robust Design: Hardened, low-reflection white glass frontside and black aluminum frame provide high stability and durability.

• High-Quality Components: Equipped with high-quality junction boxes, IP68-rated connectors, and Stäubli MC4 / Stäubli EVO2 plug-in systems for secure and efficient power connections.

• Certified and Reliable: Conforms to UL STD No. 1703 and certified to ULC/ORD Std. C1703, ensuring safety and quality compliance.

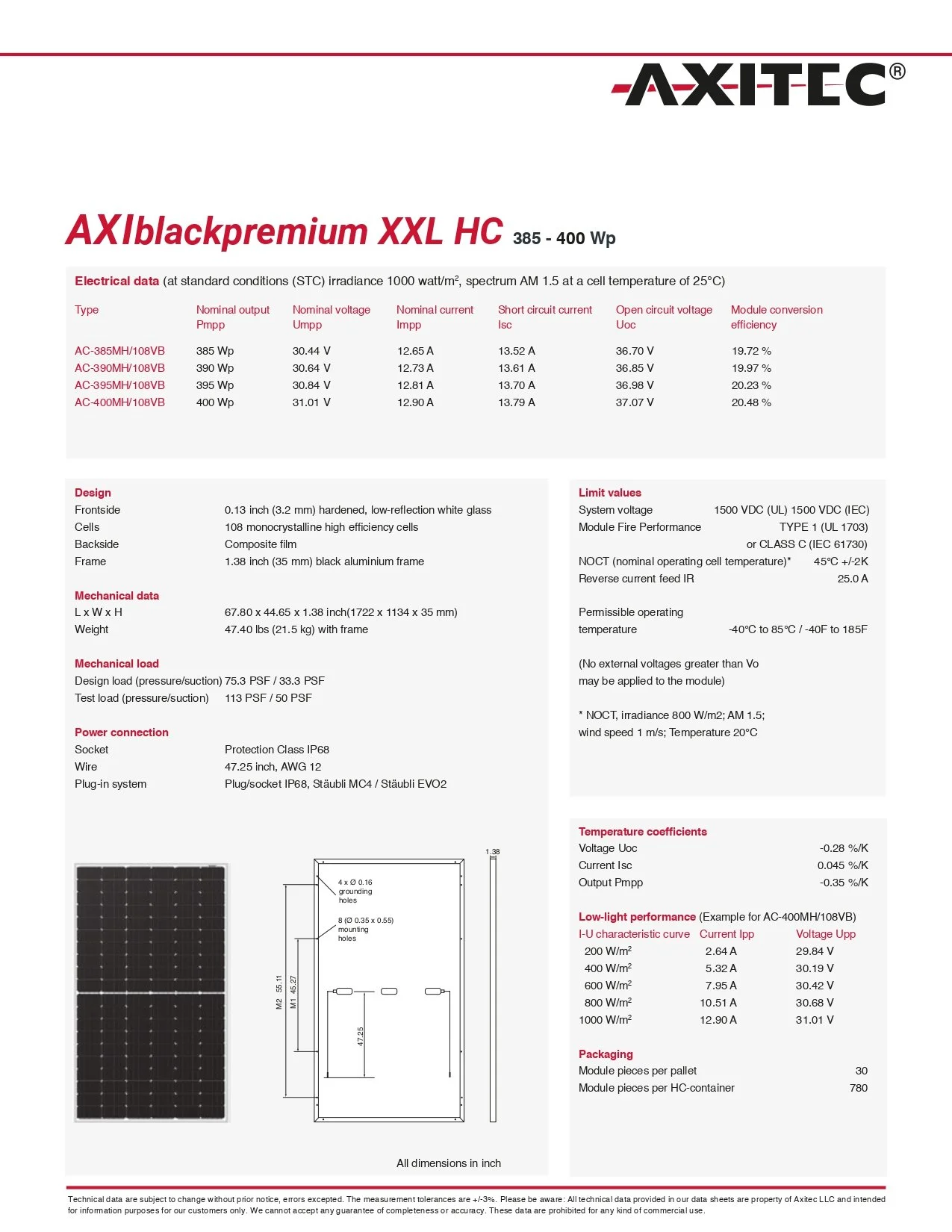

Technical Specifications:

• Nominal Power Output: 390W

• Voltage at Maximum Power (Vmp): 30.44V - 31.01V

• Current at Maximum Power (Imp): 12.65A - 12.90A

• Short Circuit Current (Isc): 13.52A - 13.79A

• Open Circuit Voltage (Voc): 36.70V - 37.07V

• Module Efficiency: Up to 20.48%

• Dimensions: 67.80 x 44.65 x 1.38 inches (1722 x 1134 x 35 mm)

• Weight: 47.40 lbs (21.5 kg)

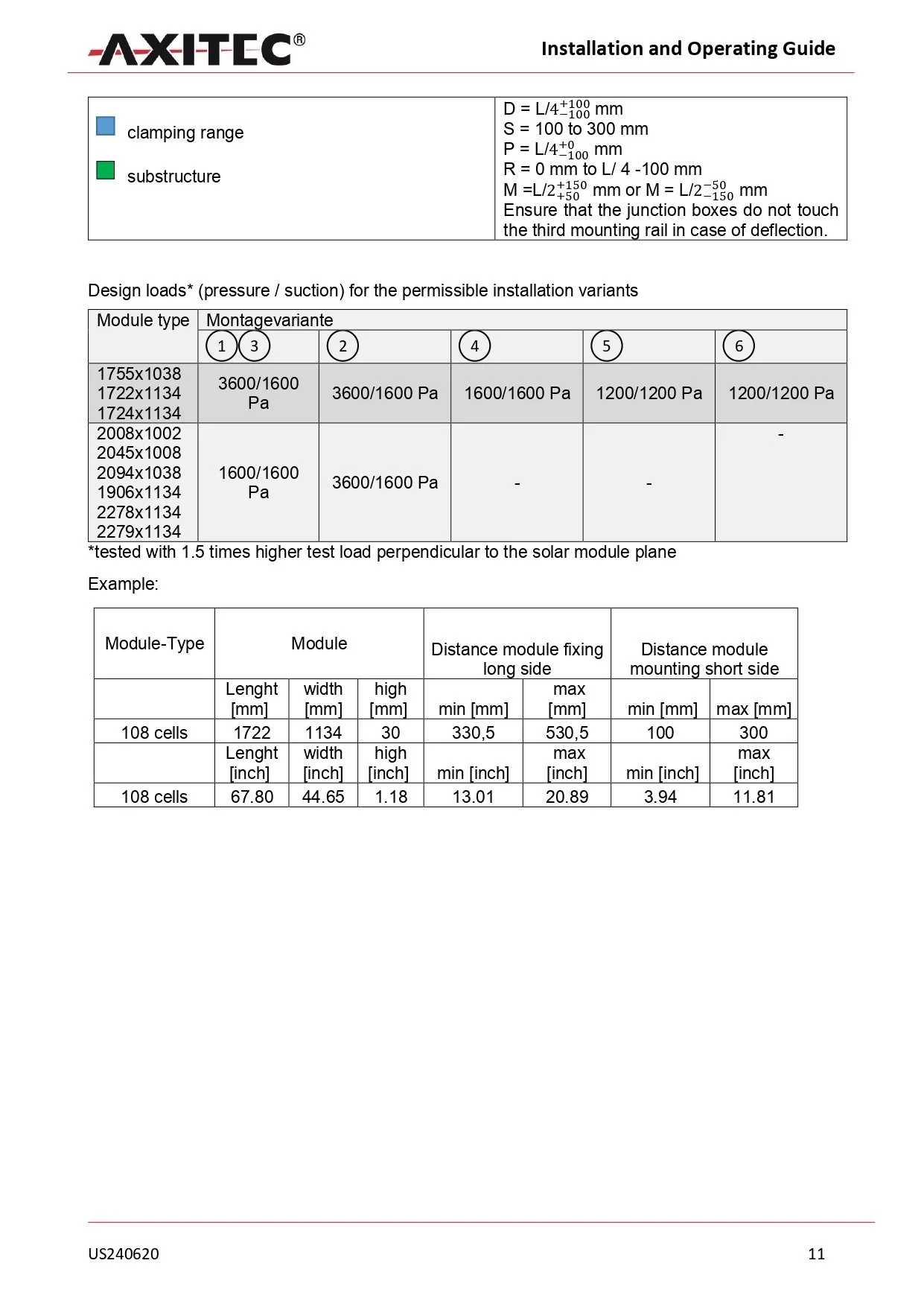

• Mechanical Load: Designed to withstand pressure/suction loads of up to 113 PSF/50 PSF.

Additional Benefits:

• Positive Power Tolerance: Guaranteed positive power tolerance from 0-5W, ensuring you receive the power output you expect.

• Low-Light Performance: Efficient energy production even in low-light conditions, making it ideal for various environmental settings.

• Operating Temperature Range: -40°C to 85°C, ensuring reliable performance across a wide range of temperatures.

Enhance your energy solutions with the AXITEC AXIblackpremium XXL HC solar module, a perfect blend of efficiency, durability, and cutting-edge technology. Invest in reliable solar power today and enjoy long-term energy savings and sustainability.

Keywords:

AXITEC solar module, high-performance solar panel, monocrystalline half-cells, AXIblackpremium XXL HC, solar energy system, durable solar panel, high-efficiency solar module, renewable energy solution, residential solar panel, commercial solar panel, long-term warranty solar panel, advanced solar technology.

Manufacturer: AXITEC

Manufacturer Item Type Name: AC-390MH/108VB

Length without packaging (mm): 1722

Width without packaging (mm): 1134

Height without packaging (mm): 35

Weight (kg): 21.5

Performance warranty (yr): 25

Power rating Pmax (Wp): 390

Nominal current Impp (A): 12.73

Short circuit current Isc (A): 13.61

Nominal voltage Umpp (V): 30.64

Open circuit voltage Uoc (V): 36.85

Max. system voltage (V): 1500

Temperature coefficient Isc (%/°C): 0.05

Temperature coefficient Pmpp (%/K°C): -0.35

Temperature coefficient Uoc (%/°C): -0.28

Cell type: Monocrystalline

Number of cells (pcs): 108

Frametype: Framed

Frame colour: Black

Backsheet: Black

Type of DC connection: MC4 EVO2

Lenght of cables (cm) minus: 120

Length of cables (cm) plus: 120
