battery, DC coupled, 9.7kWh, lithium-ion

Product Description:

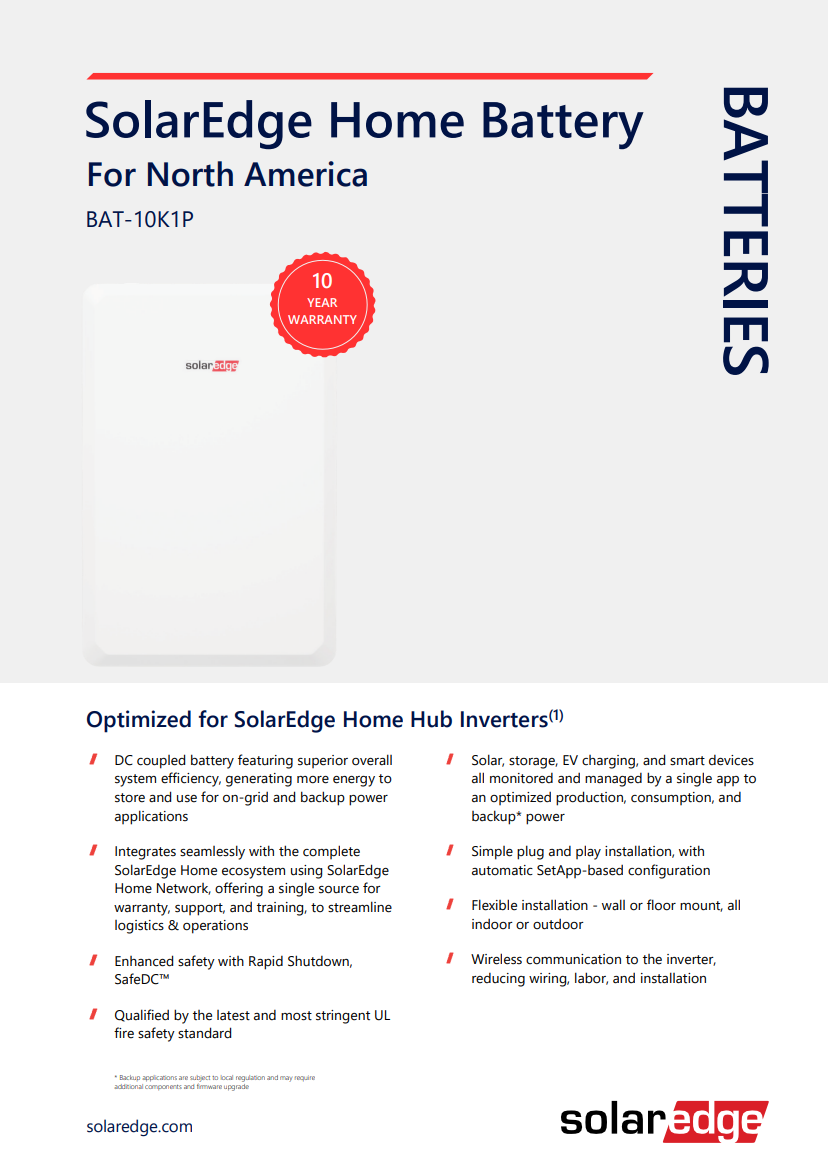

Introducing the SolarEdge Home Battery BAT-10K1P, your ultimate solution for advanced home energy management. This high-capacity, DC-coupled battery is optimized for SolarEdge Home Hub Inverters, ensuring superior overall system efficiency. Whether for on-grid or backup power applications, the SolarEdge Home Battery integrates seamlessly into your home energy ecosystem, providing safe, reliable, and efficient energy storage.

Key Features:

• High Capacity Storage: Offers a usable energy storage of 9700 Wh with a continuous output power of 5000 W and a peak output power of 7500 W for 10 seconds.

• Superior Efficiency: Achieves a peak roundtrip efficiency of over 94.5%, maximizing your energy utilization.

• Enhanced Safety Features: Includes Rapid Shutdown and SafeDC™ technology, meeting the latest UL fire safety standards.

• Comprehensive Monitoring: Manage solar, storage, EV charging, and smart devices all through a single app, ensuring optimized production and consumption.

• Flexible Installation Options: Can be installed on the wall or floor, indoors or outdoors, with IP55 / NEMA 3R rated protection against water and dust.

Technical Specifications:

• Voltage Range: 350-450 Vdc

• Communication: Wireless and RS485 interfaces for seamless integration.

• Standard Compliance: Certified with UL1642 (Cell), UL1973, UL9540A, and more.

• Dimensions: 31.1 x 46.4 x 9.84 inches

• Weight: 262 lbs

Installation and Compliance:

• Simple Setup: Plug and play installation with automatic configuration via SolarEdge SetApp.

• Wireless Communication: Reduces wiring, labor, and installation complexities.

• Warranty: Comes with a robust 10-year warranty, ensuring long-term reliability and performance.

Equip your home with the SolarEdge Home Battery BAT-10K1P for a smarter, safer, and more efficient energy solution. Perfect for homeowners looking to enhance their energy independence with a reliable power backup.

Keywords:

SolarEdge Home Battery, BAT-10K1P, high-capacity battery, energy storage system, DC coupled battery, home energy management, backup power battery, solar battery storage, smart home battery, energy-efficient battery system, SolarEdge optimized battery.

Manufacturer: SolarEdge

Manufacturer Item Type Name: BAT-10K1PS0B-02 For North America

Cell type: LFP/LiFePO4 (Lithium-Iron-Phosphate)

Length without packaging (mm): 250

Width without packaging (mm): 790

Height without packaging (mm): 1179

Weight (kg): 119
