optimizer, advanced add-on optimization solution, max. 700W, 1500V UL/1000V IEC, cable output 1.2m/input 0.12m, MC4 original, complies w/ NEC 2017/2020

Product Description:

Upgrade your solar installation with the Tigo TS4-A-O, a cutting-edge module-level optimizer designed for enhancing production, safety, and monitoring of your solar panels. This device is perfect for both new installations and existing systems, offering patented technology that maximizes power performance and module efficiency. With its robust design, the TS4-A-O is capable of withstanding extreme weather conditions and is an essential component for photovoltaic rapid shutdown systems globally.

Key Features:

• Intelligent Optimization: Optimizes power only when necessary, maximizing efficiency and extending the life of your solar panels.

• Module-level Monitoring: Provides comprehensive visibility into system-level production with detailed monitoring capabilities.

• Rapid Shutdown Compliance: Meets UL/NEC certification for rapid shutdown, enhancing safety for installers and emergency responders.

• Universal Compatibility: Fully compatible with over 50 inverter brands and thousands of inverter models, ensuring flexibility across different systems.

• Extended Warranty: Comes with a 25-year warranty, ensuring long-term reliability and peace of mind.

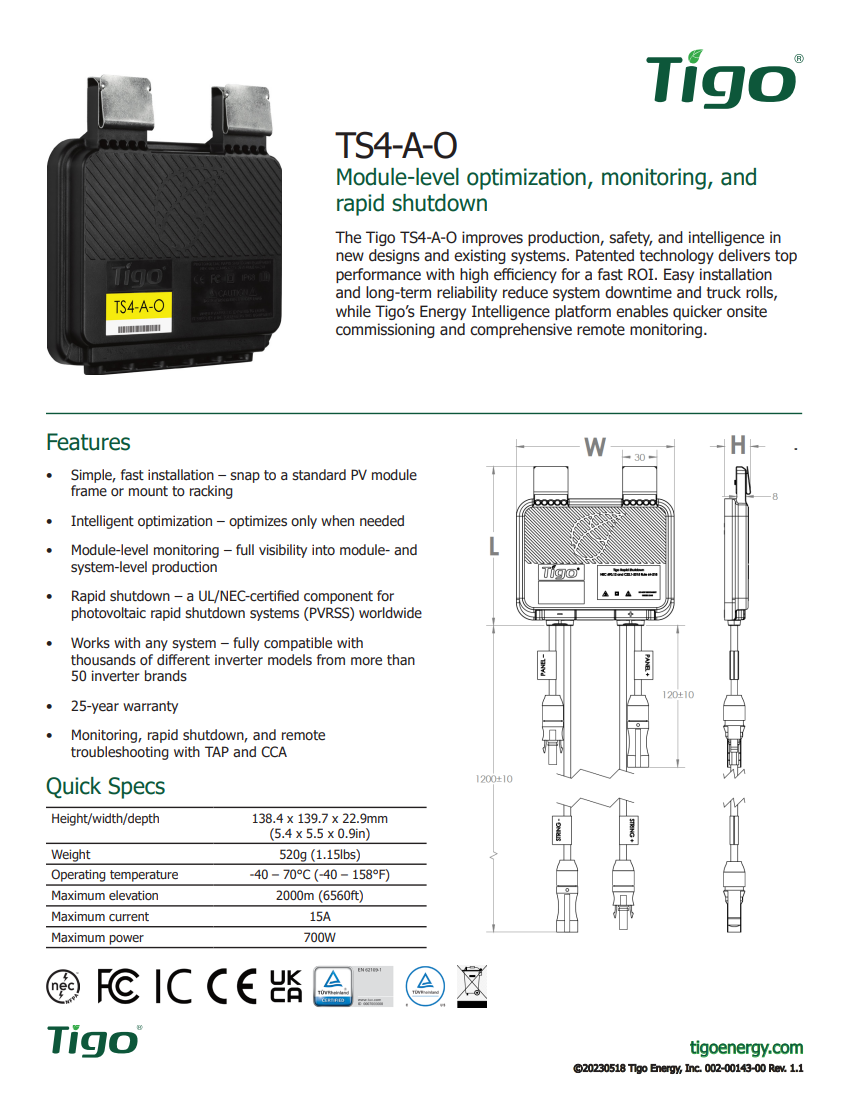

Product Specifications:

• Dimensions: 138.4 x 139.7 x 22.9 mm (5.4 x 5.5 x 0.9 inches)

• Weight: 520 g (1.15 lbs)

• Operating Temperature: -40 – 70°C (-40 – 158°F)

• Maximum Input Voltage: 80V

• Input Voltage Range: 16 – 80V

• Maximum Current: 15A

• Maximum Power: 700W

Installation and Use:

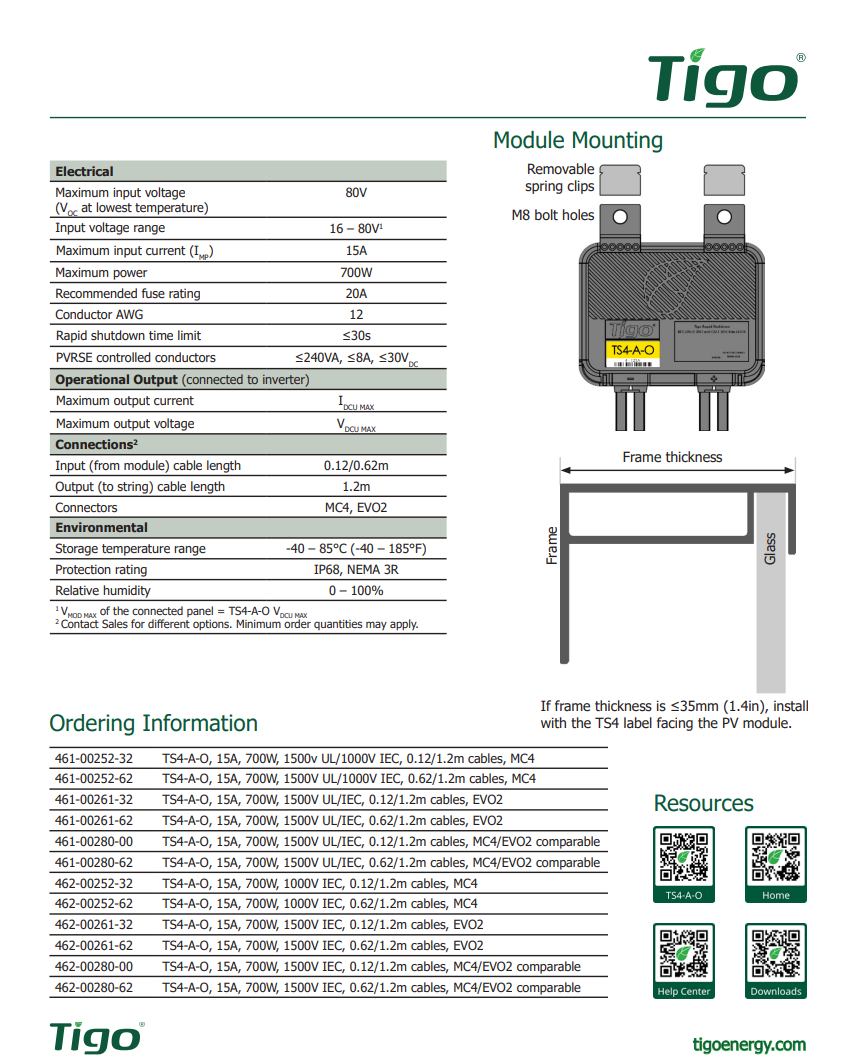

• Easy Installation: Snap to a standard PV module frame or mount to racking with minimal effort.

• Enhanced Safety Features: Offers rapid shutdown within 30 seconds to meet safety standards.

• Environmental Resistance: IP68 and NEMA 3R rated for high durability against environmental factors.

Ideal for any residential or commercial solar system, the Tigo TS4-A-O optimizer not only boosts the efficiency of each module but also provides essential safety features, making it a smart investment for optimizing solar energy production.

Keywords:

Tigo TS4-A-O, solar optimizer, module-level optimization, photovoltaic rapid shutdown, solar panel safety, solar system monitoring, energy efficiency, solar power enhancement, long-term solar investment, reliable solar optimizer.

Manufacturer Tigo Energy

Manufacturer Item Type Name TS4-A-O

Max. input current (A) 15

Length without packaging (mm) 22.9

Height without packaging (mm) 138.4

Width without packaging (mm) 139.7

Weight (kg) 0.52

Short circuit current Isc (A) 15

Max. input voltage DC (V) 80

MPP min. voltage range input (V) 16

MPP max. voltage range input (V) 80

DC connector type MC4 original

Standard Product warranty (yr) 25
